SHEPPEY AQUATICS AND REHABILITATION CENTRE

The brief was to design a replacement for Sheerness's Existing Sports Centre and Swimming Pool.

Due to Sheppey’s naval and ex-military connections, my design focuses on rehabilitation alongside the Aquatics Centre. As well as a swimming pool and gym, there is a hydrotherapy pool and rooms of various sizes for both mental and physical rehabilitation.


Orthographics

These plans, sections and elevations were drawn for the final presentation of my Aquatics Centre project.

All of these were initially hand drawn with pen on tracing paper. I then scanned them in and edited them on Photoshop, to get a clear drawing. The final step is adding the colour, including the windows, anything that can be seen though them, and shadows.

Urban Context and Site Plan.

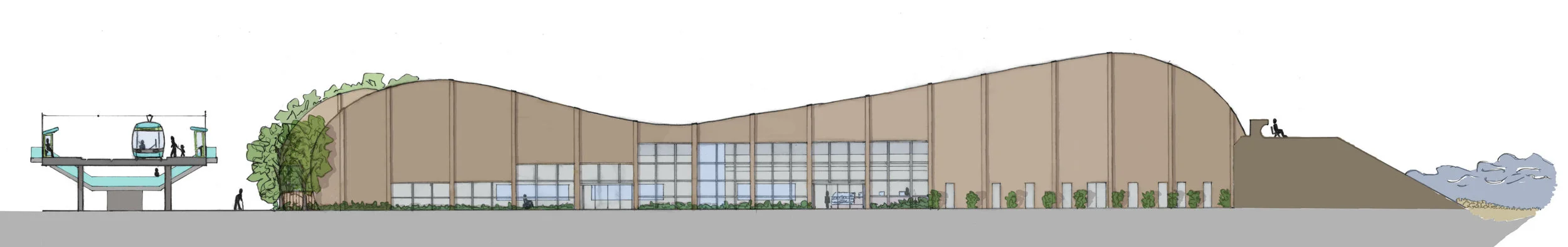

South East Elevation, including Light Rail Station.



South West Elevation, The Entrance.




North East Elevation, a view from the beach.



Ground Floor Plan

First Floor Plan.

Section, including pool depths.
